Use SSH Keys with PuTTY and WinSCP for TanOS

Generate the SSH key with PuTTYgen, add the public key to the TanOS user, then use the private key in PuTTY or WinSCP.

Choose the User

• tanadmin: admin shell access
• tancopy: file transfer with SFTP / WinSCP
• recovery: recovery access if this user exists on the appliance

Create one key per user if you want clean separation between admin access and file transfer.

Generate the Key with PuTTYgen

Install PuTTY and PuTTYgen

• Download: https://www.putty.org
• Install both PuTTY and PuTTYgen on the admin workstation.

Create the Key

• Open PuTTYgen.
• Use Ed25519. If you need old compatibility, use RSA 4096.

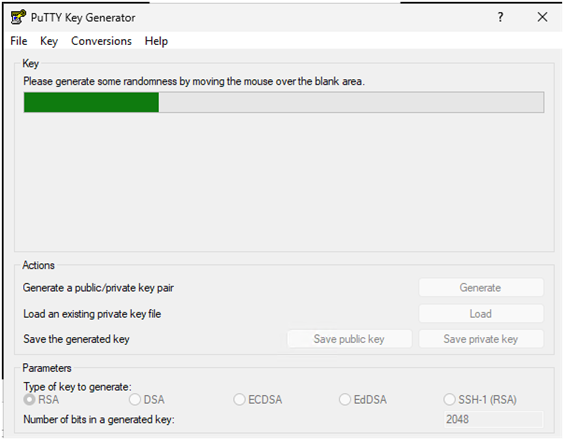

• Click Generate and move the mouse to create randomness.

Save the Private Key and Copy the Public Key

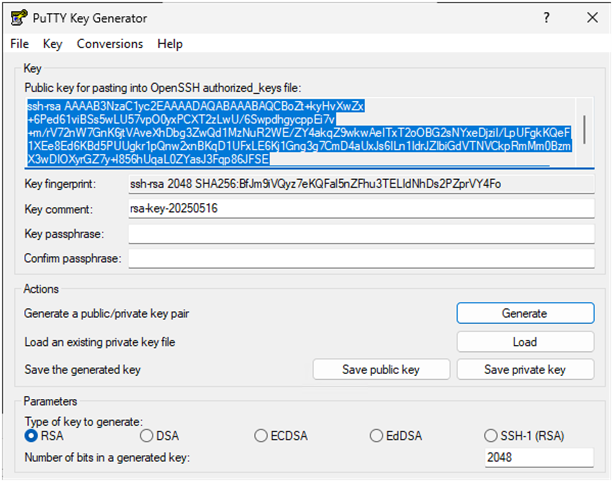

• Click Save private key.
• Store the .ppk file in a safe location.
• Use a passphrase if possible.

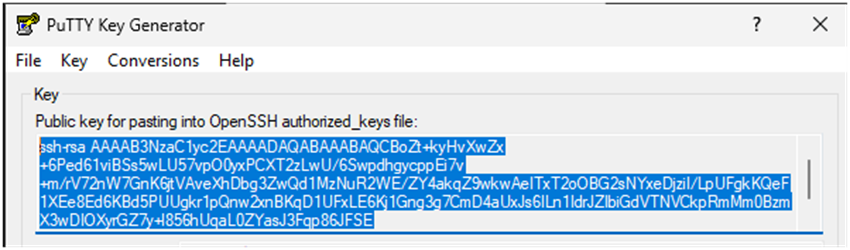

• Copy the public key from the top box in PuTTYgen.
• Paste this public key in the SSH key field of the TanOS user account.

Tip: Use Pageant if you want to cache the key and avoid typing the passphrase many times.

Connect with PuTTY

Configure the Session

• Open PuTTY.
• In Session, enter the TanOS host name, IP, or FQDN.

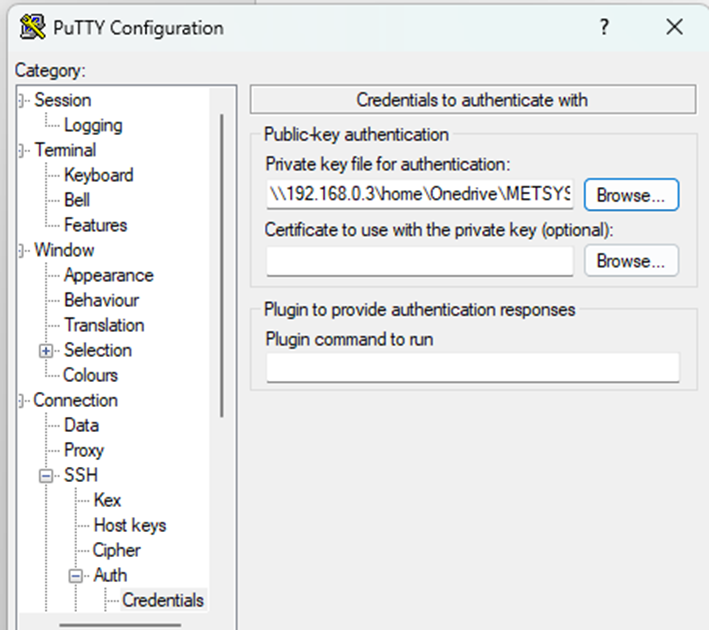

• Go to Connection > SSH > Auth.
• Set the Private key file for authentication to the correct .ppk.

Save the Session

• Go back to Session.
• Enter a name, for example Tanium-Server1.
• Click Save.

Open the SSH Session

• Click Open.
• At first connection, check and accept the server host key fingerprint.
• Enter the user name linked to the key: tanadmin, tancopy, or recovery.
• If the key matches, no password is needed.

Transfer Files with WinSCP

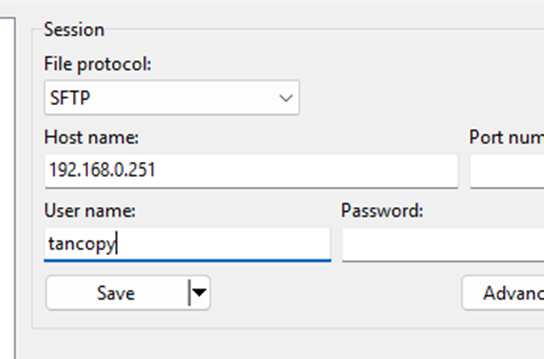

Create the Session

• Open WinSCP.
• File protocol: SFTP.
• Host name: TanOS IP or FQDN.
• User name: tancopy.

Select the Private Key

• Click Advanced.
• Go to SSH > Authentication.
• Set the Private key file to the .ppk for tancopy.
• Click OK to return to the main screen.

Save and Connect

• Click Save if you want to keep the session.

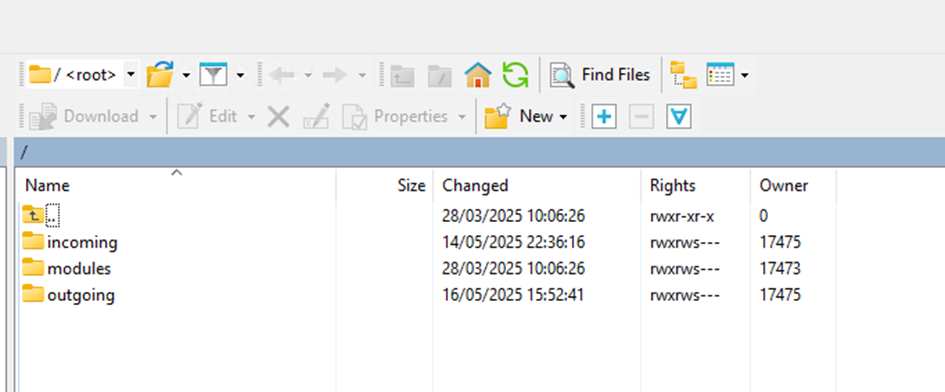

• Click Login to connect.
• If the key has a passphrase, WinSCP asks for it unless Pageant already has the key loaded.

Good Practices

• Use Ed25519 when possible.
• Use a strong passphrase for private keys.
• Do not store private keys on shared drives.
• Use one key per user or per admin if you want better access control.
